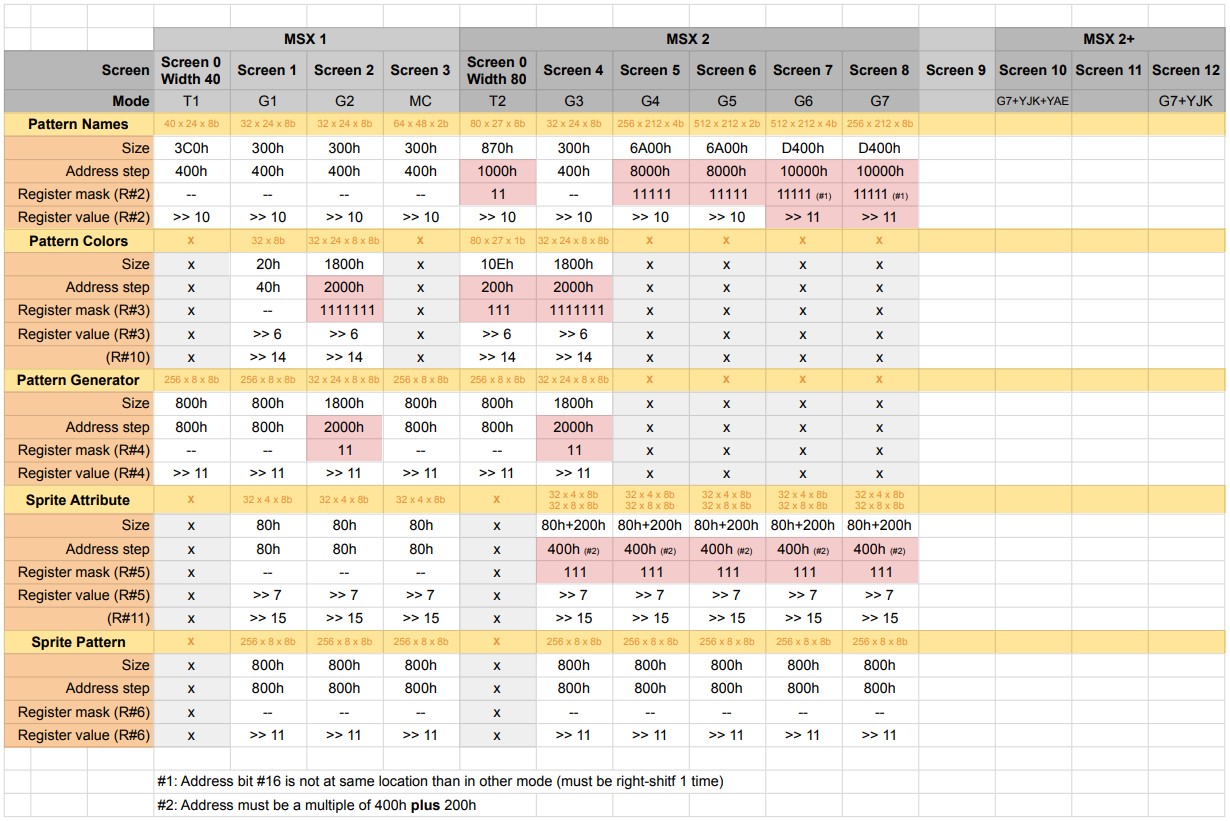

/// Set sprite attribute table address
/// @param        addr        VRAM address where to place the table (16 or 17-bits long depending on VDP_VRAM_ADDR definition)
///                            Address must be a multiple of 80h for MSX1 screen modes and  multiple of 200h for MSX2 ones.
void VDP_SetSpriteAttributeTable(VADDR addr) __FASTCALL
{
    g_SpriteAtributeLow = (u16)addr;

    u8 reg;
    reg = (u8)(addr >> 7);
    #if (MSX_VERSION >= MSX_2)
        switch(g_VDP_Data.Mode)
        {
        case VDP_MODE_GRAPHIC4:
        case VDP_MODE_GRAPHIC5:
        case VDP_MODE_GRAPHIC6:
        case VDP_MODE_GRAPHIC7:
            reg |= 0b111;
            break;
        };
    #endif
    VDP_RegWrite(5, reg);
    #if (VDP_VRAM_ADDR == VDP_VRAM_ADDR_17)
        reg = (u8)(addr >> 15);
        VDP_RegWrite(11, reg);
        g_SpriteAtributeHigh = addr >> 16;
    #endif
    addr -= 0x200;
    g_SpriteColorLow = (u16)addr;
    #if (VDP_VRAM_ADDR == VDP_VRAM_ADDR_17)
        g_SpriteColorHigh = addr >> 16;
    #endif
}
//-----------------------------------------------------------------------------
/// Set sprite pattern table address
/// @param        addr        VRAM address where to place the table (16 or 17-bits long depending on VDP_VRAM_ADDR definition)
///                            Address must be a multiple of 800h.
void VDP_SetSpritePatternTable(VADDR addr) __FASTCALL
{
    g_SpritePatternLow  = (u16)addr;
    #if (VDP_VRAM_ADDR == VDP_VRAM_ADDR_17)
        g_SpritePatternHigh = addr >> 16;
    #endif

    u8 reg = (u8)(addr >> 11);
    VDP_RegWrite(6, reg);
}


void VDP_SetLayoutTable(VADDR addr); // aussi connu sous le nom de Pattern Name Table (ou PNT)
void VDP_SetColorTable(VADDR addr);
void VDP_SetPatternTable(VADDR addr);  // aussi connu sous le nom de Pattern Generator Table (ou PGT)
void VDP_SetSpriteAttributeTable(VADDR addr);
void VDP_SetSpritePatternTable(VADDR addr);


void f(char a);
void f(short hl);
void f(long dehl);
void f(char a, char l);
void f(char a, short de);
void f(short hl, short de);
