Hello

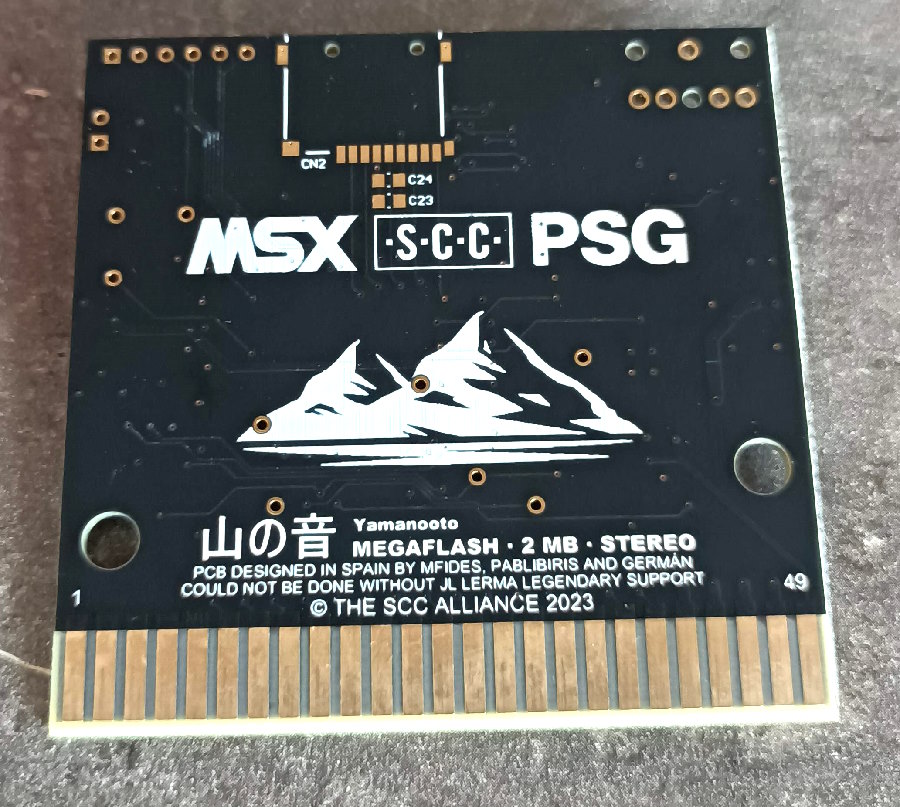

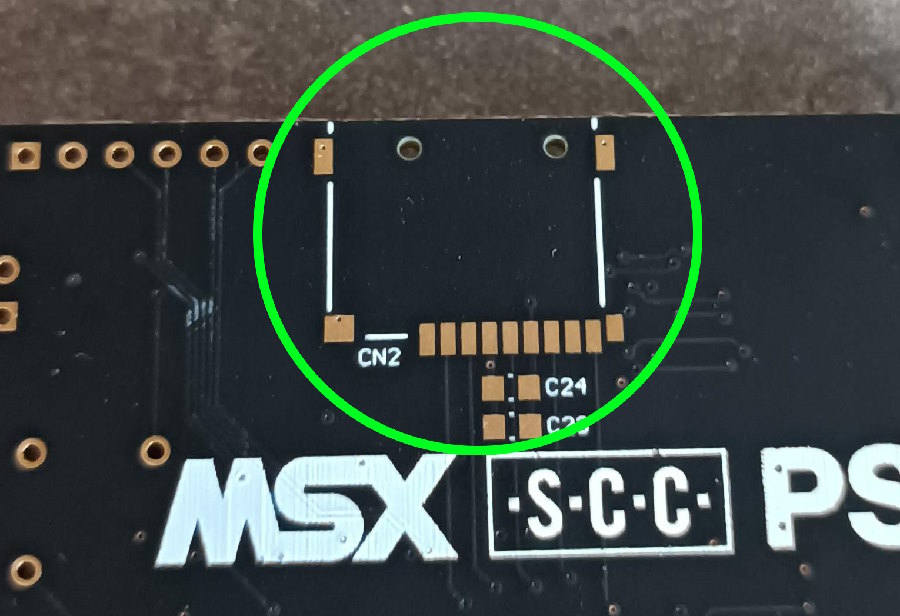

en inspectant le PCB REV1B, je me suis rendu compte d'un ajout discret a l arriere.
C'est certainement l'emplacement d'un futur support Micro SD card !!
Je vous laisse juger par vous meme !!
@Pablibiris,est il fonctionnel la sd card ? ça m'interresse
J'ai remarqué qu'il manque des condensateurs C23 et C24 Edité par MSXlegend Le 04/04/2024 à 16h16
en inspectant le PCB REV1B, je me suis rendu compte d'un ajout discret a l arriere.
C'est certainement l'emplacement d'un futur support Micro SD card !!
Je vous laisse juger par vous meme !!
@Pablibiris,est il fonctionnel la sd card ? ça m'interresse
J'ai remarqué qu'il manque des condensateurs C23 et C24 Edité par MSXlegend Le 04/04/2024 à 16h16
Hey MSXLegend
Indeed, the board is prepared for use with MicroSD. In the future, I hope near, a firmware will be available to be able to use the MicroSD.
At this momment there are a firmware available that allows the use 8 megabytes of Flashrom (the current 2 megabyte flashrom must be changed) and has an offset register to be able to handle them. But actually, we are testing It
The pin compatible Flashrom is: S29GL064N90TFI040 Edité par Pablibiris Le 02/04/2024 à 20h36
Indeed, the board is prepared for use with MicroSD. In the future, I hope near, a firmware will be available to be able to use the MicroSD.
At this momment there are a firmware available that allows the use 8 megabytes of Flashrom (the current 2 megabyte flashrom must be changed) and has an offset register to be able to handle them. But actually, we are testing It
The pin compatible Flashrom is: S29GL064N90TFI040 Edité par Pablibiris Le 02/04/2024 à 20h36
